- What is Factor Analysis?
- Quick Data Check
- Running Factor Analysis in SPSS
- SPSS Factor Analysis Output
- Adding Factor Scores to Our Data

## What is Factor Analysis?

Factor analysis is a statistical technique for identifying which underlying factors are measured by a (much larger) number of observed variables. Such “underlying factors” are often variables that are difficult to measure such as IQ, depression or extraversion. For measuring these, we often try to write multiple questions that -at least partially- reflect such factors. The basic idea is illustrated below.

Now, if questions 1, 2 and 3 all measure numeric IQ, then the Pearson correlations among these items should be substantial: respondents with high numeric IQ will typically score high on all 3 questions and reversely.

The same reasoning goes for questions 4, 5 and 6: if they really measure “the same thing” they'll probably correlate highly.

However, questions 1 and 4 -measuring possibly unrelated traits- will not necessarily correlate. So if my factor model is correct, I could expect the correlations to follow a pattern as shown below.

## Confirmatory Factor Analysis

Right, so after measuring questions 1 through 9 on a simple random sample of respondents, I computed this correlation matrix. Now I could ask my software if these correlations are likely, given my theoretical factor model. In this case, I'm trying to **confirm** a model by fitting it to my data. This is known as “**confirmatory factor analysis**”.

SPSS does not include confirmatory factor analysis but those who are interested could take a look at AMOS.

## Exploratory Factor Analysis

But what if I don't have a clue which -or even how many- factors are represented by my data? Well, in this case, I'll ask my software to suggest some model given my correlation matrix. That is, I'll **explore** the data. Hence, “exploratory factor analysis”. The simplest possible explanation of how it works is that
the software tries to find groups of variables

that are highly intercorrelated.
Each such group probably represents an underlying common factor. There's different mathematical approaches to accomplishing this but the most common one is **principal components analysis** or PCA. We'll walk you through with an example.

## Research Questions and Data

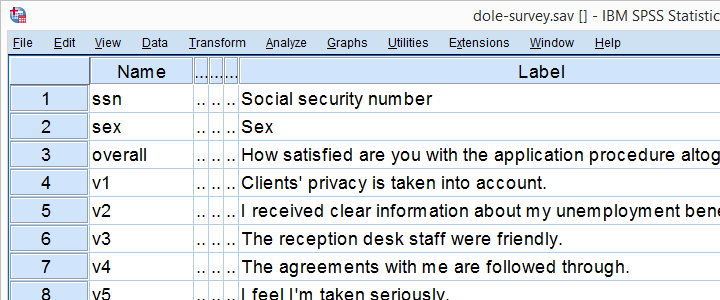

A survey was held among 388 applicants for unemployment benefits. The data thus collected are in dole-survey.sav, part of which is shown below.

The survey included 16 questions on client satisfaction. We think these measure a smaller number of underlying satisfaction factors but we've no clue about a model. So our **research questions** for this analysis are:

- how many factors are measured by our 16 questions?
- which questions measure similar factors?
- which satisfaction aspects are represented by which factors?

## Quick Data Check

Now let's first make sure we have an idea of what our data basically look like. We'll inspect the frequency distributions with corresponding bar charts for our 16 variables by running the syntax below.

***Show variable names, values and labels in output tables.**

set

tnumbers both /* show values and value labels in output tables */

tvars both /* show variable names but not labels in output tables */

ovars names. /* show variable names but not labels in output outline */

***Basic frequency tables with bar charts.**

frequencies v1 to v20

/barchart.

## Result

This very minimal data check gives us quite some **important insights** into our data:

- All frequency distributions look
**plausible**. We don't see anything weird in our data. - All variables are
**positively coded**: higher values always indicate more positive sentiments. - All variables have a value 8 (“
**No answer**”) which we need to set as a user missing value. - All variables have some
**system missing values**too but the extent of missingness isn't too bad.

A somewhat annoying flaw here is that we don't see variable *names* for our bar charts in the output outline.

If we see something unusual in a chart, we don't easily see which variable to address. But in this example -fortunately- our charts all look fine.

So let's now set our missing values and run some quick descriptive statistics with the syntax below.

***Set 8 ('No answer') as user missing value for all variables.**

missing values v1 to v20 (8).

***Inspect valid N for each variable.**

descriptives v1 to v20.

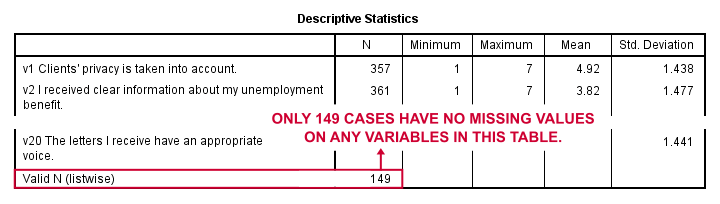

## Result

Note that none of our variables have many -more than some 10%- missing values. However, only 149 of our 388 respondents have zero missing values on the entire set of variables. This is very important to be aware of as we'll see in a minute.

## Running Factor Analysis in SPSS

Let's now navigate to

as shown below.In the dialog that opens, we have a ton of options. For a “standard analysis”, we'll select the ones shown below. If you don't want to go through all dialogs, you can also replicate our analysis from the syntax below.

Avoid “Exclude cases listwise” here as it'll only include our 149 “complete” respondents in our factor analysis. Clicking

results in the syntax below.## SPSS Factor Analysis Syntax

***Show both variable names and labels in output.**

set tvars both.

***Initial factor analysis as pasted from menu.**

FACTOR

/VARIABLES v1 v2 v3 v4 v5 v6 v7 v8 v9 v11 v12 v13 v14 v16 v17 v20

/MISSING PAIRWISE /*

**IMPORTANT!***/

/PRINT INITIAL CORRELATION EXTRACTION ROTATION

/FORMAT SORT BLANK(.30)

/PLOT EIGEN

/CRITERIA MINEIGEN(1) ITERATE(25)

/EXTRACTION PC

/CRITERIA ITERATE(25)

/ROTATION VARIMAX

/METHOD=CORRELATION.

## Factor Analysis Output I - Total Variance Explained

Right. Now, with 16 input variables, PCA initially extracts 16 factors (or “components”). Each component has a **quality score** called an **Eigenvalue**. Only components with high Eigenvalues are likely to represent a real underlying factor.

So what's a high Eigenvalue? A common rule of thumb is to select components whose Eigenvalue is at least 1. Applying this simple rule to the previous table answers our first research question: our 16 variables seem to measure 4 underlying factors. This is because only our first 4 components have an Eigenvalue of at least 1. The other components -having low quality scores- are not assumed to represent real traits underlying our 16 questions. Such components are considered “scree” as shown by the line chart below.

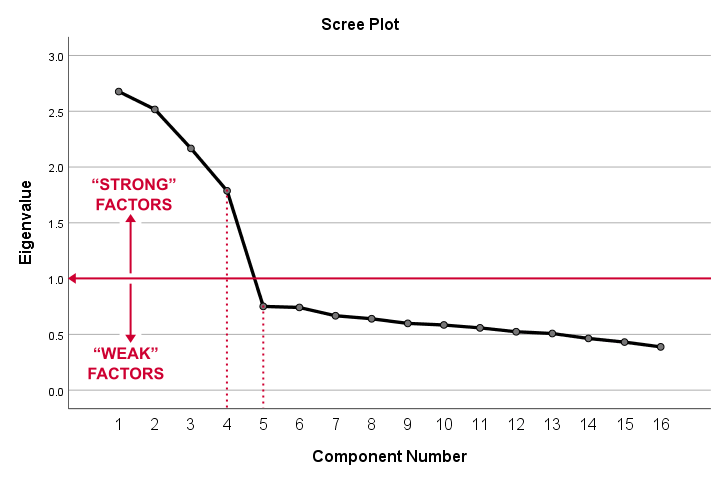

## Factor Analysis Output II - Scree Plot

A scree plot visualizes the Eigenvalues (quality scores) we just saw. Again, we see that the first 4 components have Eigenvalues over 1. We consider these “strong factors”. After that -component 5 and onwards- the Eigenvalues **drop off dramatically**. The sharp drop between components 1-4 and components 5-16 strongly suggests that 4 factors underlie our questions.

## Factor Analysis Output III - Communalities

So to what extent do our 4 underlying factors account for the variance of our 16 input variables? This is answered by the r square values which -for some really dumb reason- are called **communalities** in factor analysis.

Right. So if we predict v1 from our 4 components by multiple regression, we'll find r square = 0.596 -which is v1’ s communality. Variables having **low communalities** -say lower than 0.40- don't contribute much to measuring the underlying factors.

You could consider **removing** such variables from the analysis. But keep in mind that doing so changes *all* results. So you'll need to rerun the entire analysis with one variable omitted. And then perhaps rerun it again with another variable left out.

If the scree plot justifies it, you could also consider selecting an **additional component**. But don't do this if it renders the (rotated) factor loading matrix less interpretable.

## Factor Analysis Output IV - Component Matrix

Thus far, we concluded that our 16 variables probably measure 4 underlying factors. But
which items measure which factors?
The component matrix shows the Pearson correlations between the items and the components. For some dumb reason, these correlations are called **factor loadings**.

Ideally, we want each input variable to measure precisely one factor. Unfortunately, that's not the case here. For instance, v9 measures (correlates with) components 1 and 3. Worse even, v3 and v11 even measure components 1, 2 and 3 simultaneously. If a variable has more than 1 substantial factor loading, we call those **cross loadings**. And we don't like those. They complicate the interpretation of our factors.

The solution for this is **rotation**: we'll **redistribute the factor loadings** over the factors according to some mathematical rules that we'll leave to SPSS. This redefines what our factors represent. But that's ok. We hadn't looked into that yet anyway.

Now, there's different rotation methods but the most common one is the **varimax rotation**, short for “**vari**able **max**imization. It tries to redistribute the factor loadings such that each variable measures precisely one factor -which is the ideal scenario for understanding our factors. And as we're about to see, our varimax rotation works perfectly for our data.

## Factor Analysis Output V - Rotated Component Matrix

Our rotated component matrix (below) answers our second research question: “**which variables measure which factors?**”

Our last research question is: “**what do our factors represent?**” Technically, a factor (or component) represents whatever its variables have in common. Our rotated component matrix (above) shows that our first component is measured by

- v17 - I know who can answer my questions on my unemployment benefit.
- v16 - I've been told clearly how my application process will continue.
- v13 - It's easy to find information regarding my unemployment benefit.
- v2 - I received clear information about my unemployment benefit.
- v9 - It's clear to me what my rights are.

Note that these variables all relate to the respondent receiving clear information. Therefore, we interpret component 1 as “clarity of information”. This is the **underlying trait** measured by v17, v16, v13, v2 and v9.

After interpreting all components in a similar fashion, we arrived at the following descriptions:

- Component 1 - “
**Clarity of information”** - Component 2 - “
**Decency and appropriateness”** - Component 3 - “
**Helpfulness contact person”** - Component 4 - “
**Reliability of agreements”**

We'll set these as variable labels after actually adding the factor scores to our data.

## Adding Factor Scores to Our Data

It's pretty common to add the actual factor scores to your data. They are often used as predictors in regression analysis or drivers in cluster analysis. SPSS FACTOR can add factor scores to your data but this is often a bad idea for 2 reasons:

- Factor scores will only be added for cases without missing values on any of the input variables. We saw that this holds for only 149 of our 388 cases.
- Factor scores are z-scores: their mean is 0 and their standard deviation is 1. This complicates their interpretation.

In many cases, a better idea is to **compute factor scores as means** over variables measuring similar factors. Such means tend to correlate almost perfectly with “real” factor scores but they don't suffer from the aforementioned problems. Importantly, we should do so only if all input variables have **identical measurement scales**. Since this holds for our example, we'll add factor scores with the syntax below.

## Computing and Labeling Factor Scores Syntax

***Create factors as means over variables per factor.**

compute fac_1 = mean(v16,v13,v17,v2,v9).

compute fac_2 = mean(v3,v1,v5,v20).

compute fac_3 = mean(v11,v7,v6,v8).

compute fac_4 = mean(v4,v14,v12).

***Label factors.**

variable labels

fac_1 'Clarity of information'

fac_2 'Decency and appropriateness'

fac_3 'Helpfulness contact person'

fac_4 'Reliability of agreements'.

***Quick check.**

descriptives fac_1 to fac_4.

## Result

This descriptives table shows how we interpreted our factors. Because we computed them as means, they have the same 1 - 7 scales as our input variables. This allows us to conclude that

- “Decency and appropriateness” is rated
**best**(roughly 5.0 out of 7 points) and - “Clarity of information” is rated
**worst**(roughly 3.9 out of 7 points).

Thanks for reading.

## This tutorial has 40 comments

## By Raf on January 10th, 2020

Hi

thanks for your paper.

Suppose the correlation matrix is used (standardized data). The Component matrix is used to calculate the Principal Components of any case. Are these PC's also standardized? And what's the purpose of the Component score coefficient matrix? What can i

do practically with it?

Thanks

## By Ruben Geert van den Berg on January 5th, 2020

A negative loading simply means that a variable has a negative correlation with some factor: high scores on this variable are associated with low scores on the factor and reversely.

If you have several strong negative loadings, see if these variables have been reversely coded (higher scores indicate less agreement for instance). If that's the case, read up on SPSS - What’s the Best Way to Reverse Code Variables?

In any case, you want to overall pattern of loadings to look credible.

## By Vusi on January 4th, 2020

Thanks.

What does a negative loading mean?

## By M. J. Abedin on December 25th, 2019

Excellent initiative. Need more example.

## By Ruben Geert van den Berg on November 17th, 2019

Good question!

First off, neither correlations nor factor analysis require normally distributed variables.

Only the statistical significance test for correlations requires normality and we only really need it for small sample sizes of N < 25 or so.

Both techniques do -however- require

quantitativevariables: variables may not be nominal or ordinal.For such

qualitative variables, SPSS has the CATPCA procedure but it requires an additional "Categories" license. It very basically estimates the optimal numeric values for answer categories and then proceeds as usual.Hope that helps!
